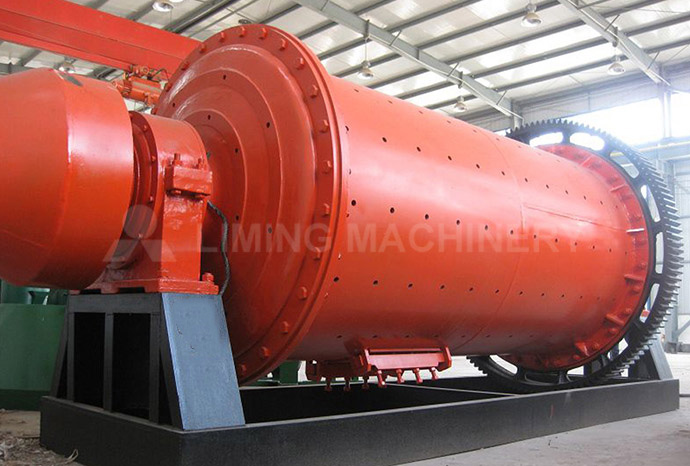

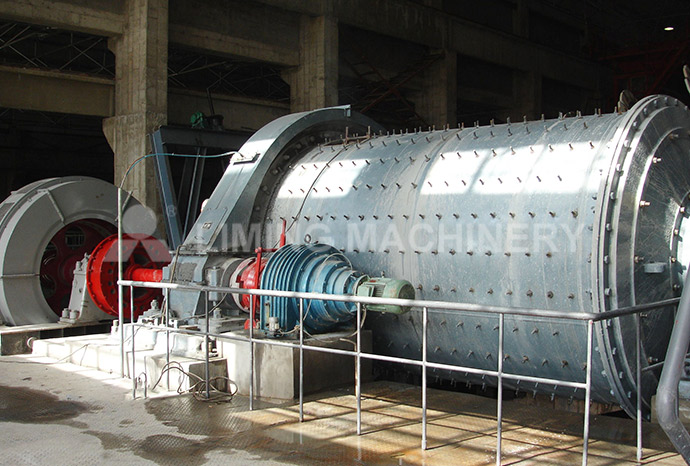

Cement ball mills, owing to their product particle size and shape characteristics, are particularly suitable for cement grinding applications, offering significant advantages for cement hydration and later-stage strength development. With shell diameters ranging from 2.2m to 4.2m, a single cement ball mill can achieve a grinding capacity of 11 to 87 tons of cement product per hour.
1.
High grinding efficiency and low maintenance cost.
2.
The product has uniform fineness and smooth.
3.
Low vibration, good equipment sealing, no dust overflow, environment friendly.
4.
Fineness and production capacity can be adjusted within a certain range.
Working Principle
Clinker Ball Mill usually have 2 to 4 chambers, and materials are evenly fed into the first chamber of the ball mill through the feeding screw by the feeding device. The chamber has a stepped lining plate and is filled with grinding media of different specifications. The rotation of the cylinder generates centrifugal force, which brings the grinding media to a certain height and then falls down, causing impact and grinding on the materials. After rough grinding is completed in chamber 1, the material enters the next chamber through the partition plate. This chamber is lined with corrugation or flat lining plates and contains grinding media for further grinding of the material; Powdered materials are discharged through the discharge comb board to complete the grinding process.

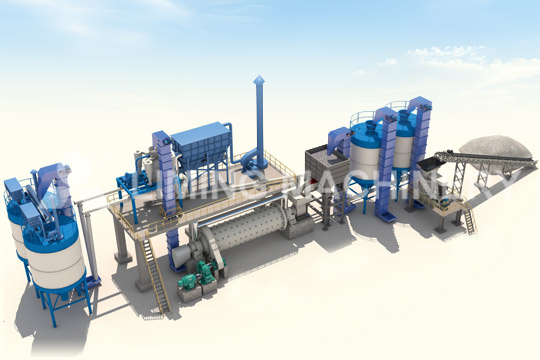

In cement plants the Ball Mill grinds raw meal and cement (clinker plus additives), often with a roller press pre-crusher and analyzer in a combined grinding system. Closed-circuit operation stabilizes specific surface area for different cement grades—
Dry grinding of limestone and similar non-minerals usually reaches 80–400 mesh (0.045–0.18 mm), stable and controllable with a closed-circuit analyzer; wet grinding goes finer. Fineness is governed mainly by ball grading, speed and classification, so
The Ball Mill spins its shell to lift and cascade steel balls that impact and grind material. Compartment design splits coarse and fine grinding with diaphragms and screening for higher efficiency. Dry mode pairs with an analyzer circuit; wet mode with a
Yes. The Ball Mill has dry and wet types: dry for cement raw meal, non-mineral powders and coal with collection and classification; wet for ore beneficiation and ceramic slurry with classifier discharge. Structures are similar; choose by process and down
Grouped by shell diameter, capacity runs from 1 to over 100 t/h. A φ1.83 m mill makes about 3–15 t/h, a φ2.4 m mill about 8–35 t/h, and large φ3.2 m+ mills 30–100 t/h. Beneficiation, cement and bulk powder lines size the shell from the target ou
Feed is generally kept below 25 mm, up to 30–40 mm for large mills. Oversize hits liners and balls and lowers efficiency, so crushing and screening precede the mill to even the feed. Even feed protects the host, extends liner life and keeps running smo
