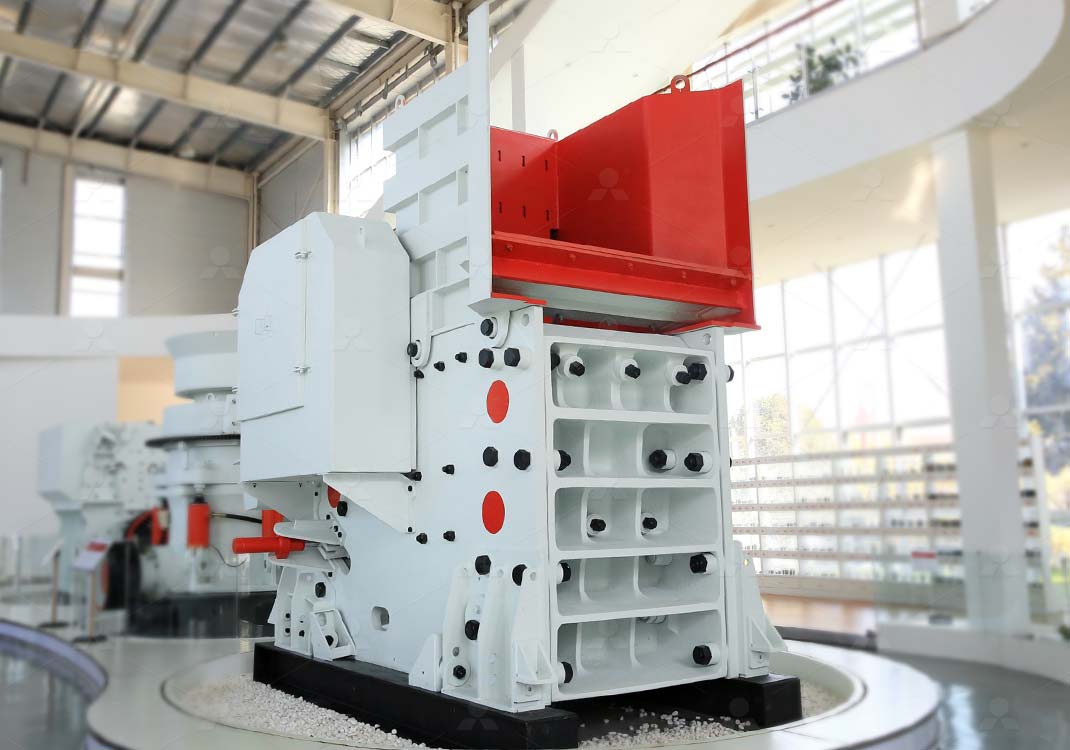

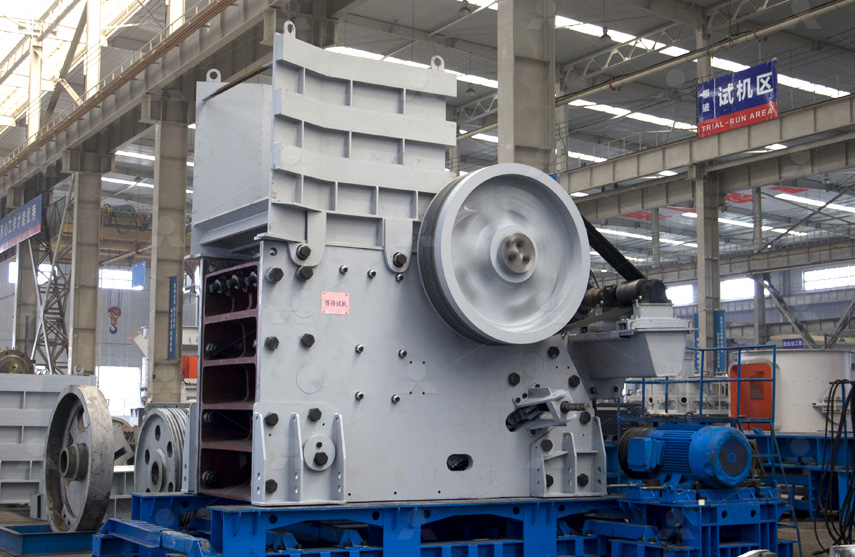

C6X Series Jaw Crusher

C6X Jaw Crusher is new equipment used for crushing hard or abrasiveness stones. It is possess of detachable frame without welding structure, double wedge adjusting device, elastic limit damping device and integrated motor seat, which will make C6X Series Jaw Crusher popular in the market.

Input Size: 20-40mm

Capacity: 20-800T/H

Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Working Principle

Input dynamic by motor, the pulley drives eccentric shaft to make the movable jaw move upwards and downwards with SPC belt. When the movable jaw moves forth toward the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which met the requirements will be discharged from the outlet. Since the motor keeps working, the crusher will crush and discharge periodically to achieve mass production.

FAQ

How to handle severe vibration during C6X jaw crusher operation?

Stop and cut off power supply for troubleshooting. Check whether anchor bolts are loose and whether foundation has settlement or cracks. Inspect fasteners of jaw plates for loosening. Large non‑crushable foreign objects inside chamber also cause impact

What are the feed size and discharge adjustment range of C6X jaw crusher?

Maximum feed size varies by model; large models accept lump feed up to 1000 mm. Discharge gap is adjusted by shims, with output size ranging from tens to over 200 mm. Adjustment is completed by replacing shims during shutdown to match feed requiremen

What materials can C6X series jaw crusher process?

C6X jaw crusher is designed for primary crushing. It handles high‑hardness materials like limestone, granite, basalt, iron ore, copper ore, as well as construction waste and quartzite. Its reinforced movable jaw and heavy‑duty frame suit feed with co

What are the core advantages of C6X jaw crusher vs traditional jaw crusher?

Compared with conventional jaw crushers, C6X features optimized frame, bearing assembly and crushing chamber. Large‑eccentric‑throw spindle delivers bigger stroke for higher crushing efficiency. Modular frame reduces welding stress and improves impac

How to handle cavity jam in the C6X Series Jaw Crusher?

Jamming comes from oversize, foreign matter or uneven feed. Stop, cut power and tag out, then clear the stuck material—never poke while running. Frequent jams need checking feed size and de-ironing, or adjusting upstream crushing and adding a grizzly f

Does C6X jaw crusher suit wet‑crushing or dry‑crushing processes?

C6X is mainly designed for dry crushing and widely used for primary crushing in aggregate mines. Limited water‑spray dust suppression is allowed, yet heavy wet submerged crushing is not recommended. Mass mud and water entering bearings and hinge points
