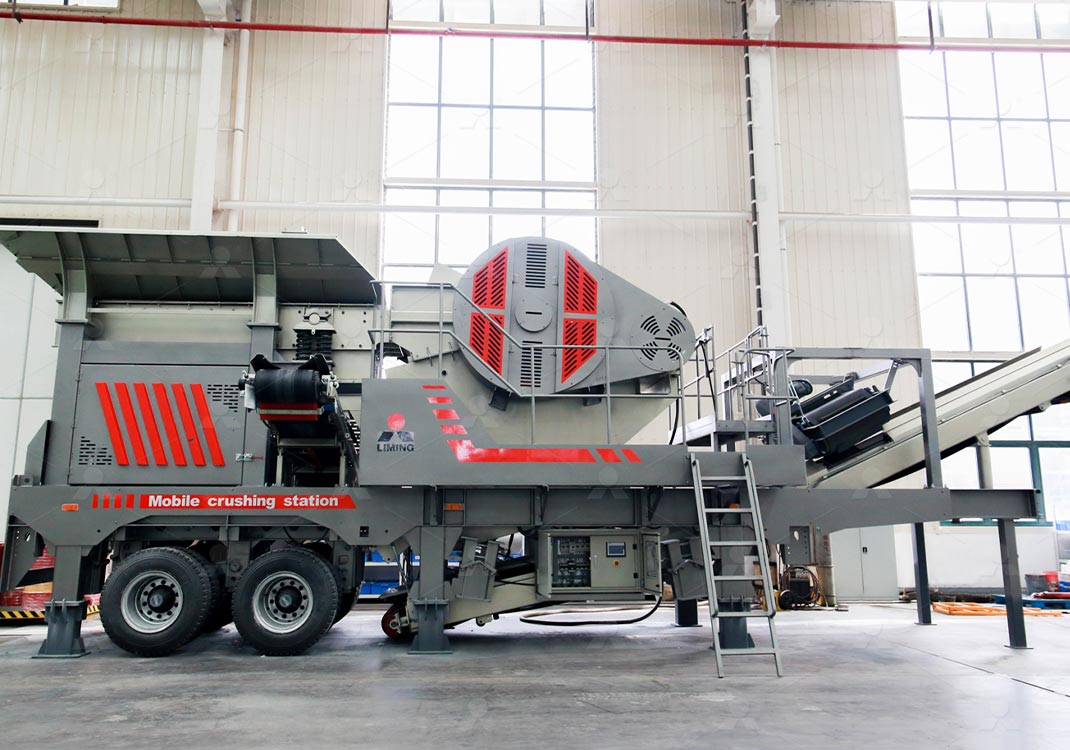

NK series mobile crusher is new generation of mobile crushing station equipped with intelligent control system. It makes all components completely airborne, so there is no need to install machine and pour foundation. It can be put into use as soon as it arrives at the production site, which is very flexible.
1.
NK mobile crushing station can be divided into mobile primary jaw crusher, mobile medium crusher and mobile vibrating screen. NK mobile station can be assembled according to the needs of customers, which has stronger applicability and wider application scope.
2.
By changing the main machine to quickly assemble the required mobile crushing station. The investment cost can be reduced and the preparation cycle can be shortened. It can satisfy customers’ diversified needs.
3.
NK mobile crushing station adopts integrated intelligent automatic control system, which is more convenient to operate and more precise to adjust. It is easy to control the whole crushing process.
4.
The main machine equipped on the NK mobile crushing station is specially designed for mobile crusher, which takes advantages of reliable performance, large capacity, high energy utilization and easy maintenance.
5.
Adjustable fixed leg design can achieve no foundation installation. Airborne components do not need to be disassembled, which eliminates on-site installation process. There is no external belt conveyor, and the production site doesn’t need crane and belt conveyor, so mobile crusher can be quickly installed and debugged.
6.
Vibrating screen adopts thin oil self-lubrication mode and it can be replaced lubricating oil once every 8 months, which can save lubricating oil and labor costs.
Working Principle
NK wheel‑type advantages include lower capital cost, efficient highway towing and simple maintenance for sites with paved roads and frequent relocation. Drawbacks are poor performance on muddy rough terrain; it cannot move by itself and depends on exte
Before relocation: empty hopper and crushing chamber; fold and lock all hydraulic conveyor arms; disconnect external power cables; fasten locking latches for crusher and screen box; check tire pressure and suspension components. After arriving new site:
NK wheel‑type mobile crushing plant is semi‑mobile equipment integrating feeding, crushing, screening and conveying on wheel chassis. It requires no large concrete foundation and is towed by trailer for relocation. It suits scattered quarries, short
NK wheel‑mounted plant supports dual‑power configuration. External grid power is preferred for low energy cost. For remote sites without grid access, on‑board diesel generator set is optional for fully independent operation. Output capacity under d
NK wheel‑mounted plant flexibly equips C6X jaw crusher, HPT cone crusher, impact crusher or sand maker for different process units. Jaw‑crusher unit performs primary crushing for lump ore and construction waste. Cone or impact‑crusher units deliver
For construction waste with mixed steel bars and iron fragments, magnetic iron separator is standard or optional, suspended above main discharge conveyor belt. It attracts steel bars and nails during material conveying and reduces impact damage risk to m
