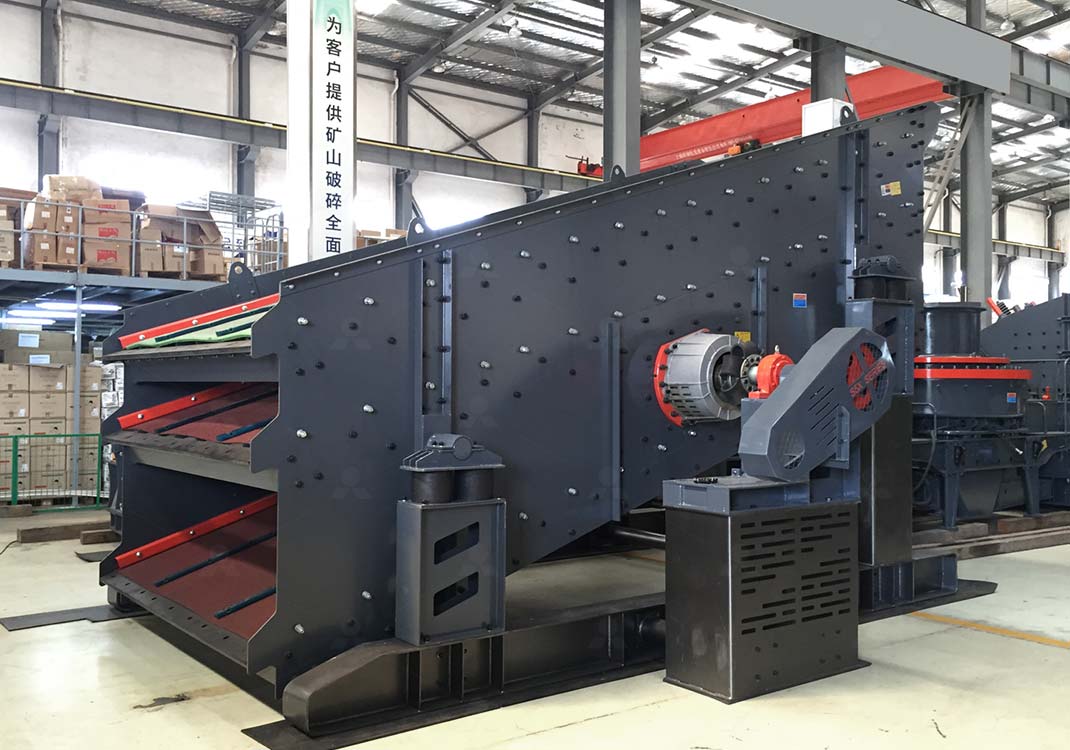

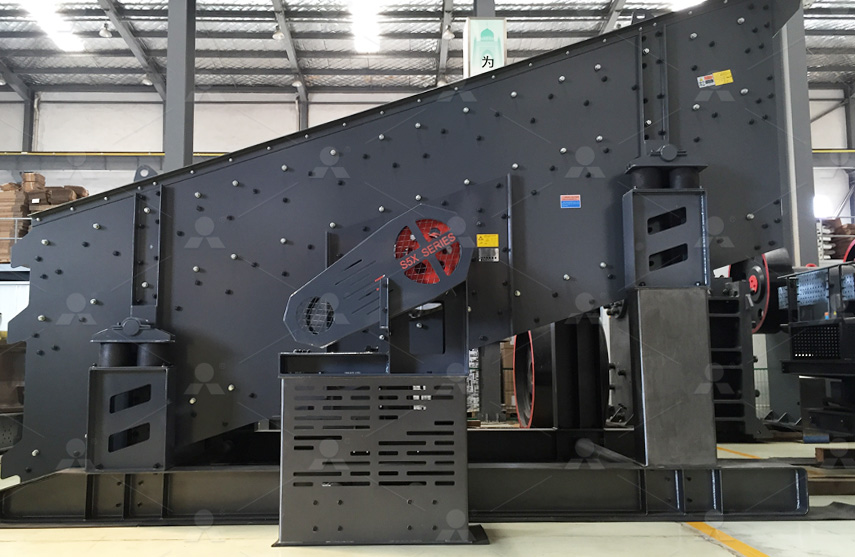

S5X Series Vibrating Screen is new equipment made in Liming Heavy Industry, and it is particularly suitable for heavy type, medium type and fine type, etc. screening work. This machine adopts SV Hyper-Energy Exciter, which makes screening efficiency improved.
1.
Since the screen adopts latest advanced design concept and manufacturing technique, it has enhanced vibrating strength G-force. It owns high throughout capacity, and more efficient screening capability.
2.
The SV Hyper-Energy Exciter is standard configuration for S5X series vibrating screen, and it has high efficiency and solid reliability. SV1-SV4 four models of exciter, to adjust the quantity of balancing weight, apply to all kinds of vibrating screen’s different excitation force requirement. The spare parts of screen are swappable, universal, standard, and modular.
3.
The screen frame adopts finite element analysis, enabled the design intensity, weight balance and fatigue stress control in a safety margin.
4.
Driving motor and exciter adopts flexible drive, makes the operation smooth and stable.
5.
The screen side frame is without any form of welding point, and the support seat adopts rubber spring. 400mm long feeding chute, 25mm thick rubber plate, and 5mm beam protection wrapper sheet, these component ensured the screen has extra-long service life.
Working Principle
S5X vibrating screen is mainly composed of screen box, spring support groups, bearing, vibrators, transmission, motor, transmission bearings and other components. S5X vibrating screen is a machine supported by springs , block eccentric vibration as the exciter source and generated excitation force by the rotation of the eccentric , So that the screen box circumferential consequent reciprocation. The material on the inclined sieve surface successive approximation in round bouncing tumbling motion, by repeatedly comparing with mesh, smaller than the mesh size of the material through the sieve, larger than the screen hole size of materials still on the screen mesh, thereby completing the screening process.
S5X circular vibrating screen is high‑performance circular‑motion screen for material classification, closed‑circuit return and pre‑screening. It separates crushed material into multiple finished fractions; oversize particles return to crusher fo
S5X circular vibrating screen can be equipped with 1‑4 screen decks; deck quantity determines number of finished fractions. Single deck is for simple pre‑screening to remove large impurities. Two decks produce three material fractions. Three decks ou
S5X features circular‑motion trajectory. Screen box moves in quasi‑circular orbit to throw material upward‑forward for high screening efficiency for medium‑coarse aggregate. Linear screen performs reciprocating straight‑line motion and suits sa
Poor efficiency and over‑size contaminants in finished goods are firstly checked against torn screen meshes. Then verify deck inclination and amplitude setting. High feed moisture and clay clog apertures and weaken sifting capacity. Biased feeding conc
Support springs bear full excitation load and isolate vibration transfer to frame and foundation to guarantee normal circular orbit motion of screen box. S5X uses high‑toughness coil springs. Spring fracture, plastic deformation or stiffness decay caus
S5X screen meshes mainly include manganese‑steel woven mesh, polyurethane mesh and perforated steel plate. Manganese‑steel woven mesh features high open‑area ratio for dry aggregate with medium wear resistance. Polyurethane mesh delivers excellent
